System Folder Settings



The system folders settings are where you can change the path and folder locations for Router-CIM Automation Suite to find certain files for use.

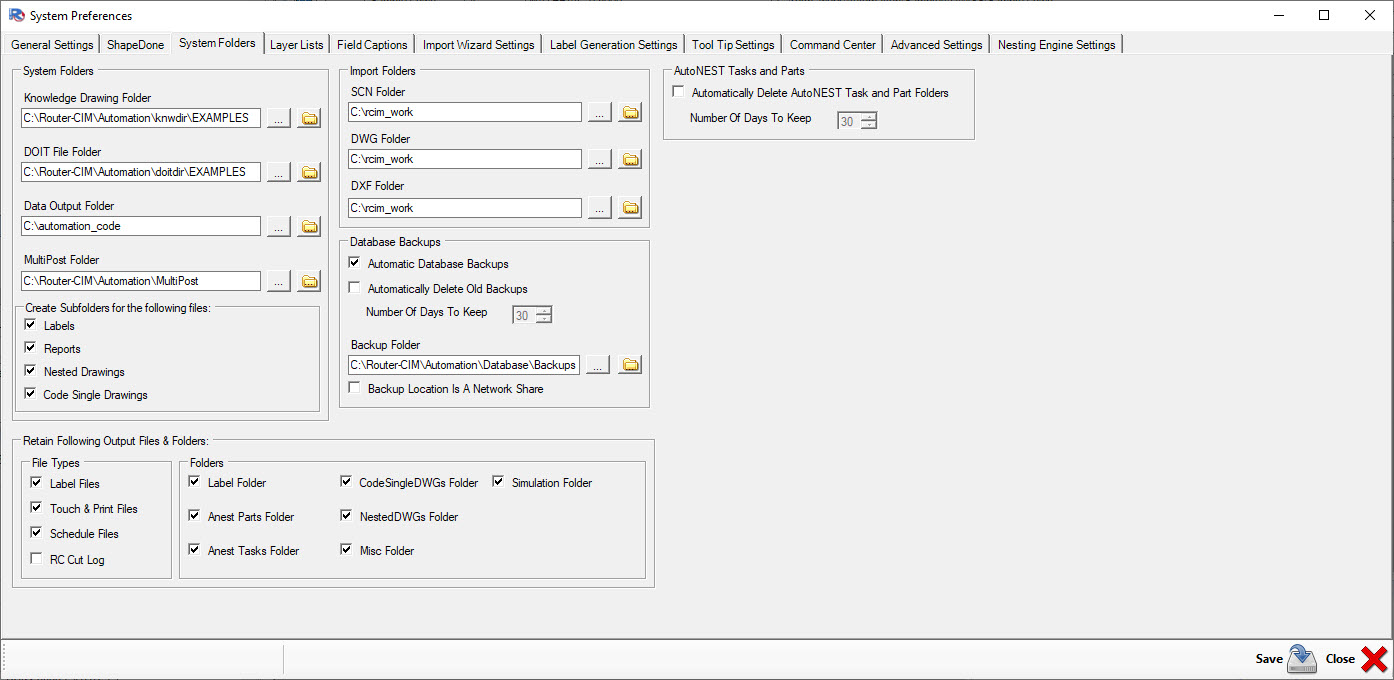

Settings_System_Folders



System Folders



Knowledge Drawing Folder:

This is the path to the folder where you store your knowledge drawings.

By default it is C:\Router-CIM\Automation\knwdir\EXAMPLES.



DOIT File Folder:

This is the path to the folder where you store your DOIT files.

By default it is C:\Router-CIM\Automation\doitdir\EXAMPLES.



Data Output Folder:

This is the path to the folder where all the job files and NC code will be saved when a job has run.

By default this is C:\automation_code.





Import Folders



SCN Folder:

This is the path to the folder where Router-CIM Automation Suite will look for macros when importing them into a job if the path is not specified.

By default the path is set to C:\rcim_work



DWG Folder:

This is the path to the folder where Router-CIM Automation Suite will look for DWG files when importing them into a job if the path is not specified.

By default the path is set to C:\rcim_work



DXF Folder:

This is the path to the folder where Router-CIM Automation Suite will look for DXF files when importing them into a job if the path is not specified.

By default the path is set to C:\rcim_work





Create Subfolders for the following files:



Labels:

Checking this box will create a separate folder in the result folder for all the label related files.



Reports:

Checking this box will create a separate folder in the result folder for all the report data related files.



Nested Drawings:

Checking this box will create a separate folder in the result folder for all the nested drawings.



Code Single Drawings:

Checking this box will create a separate folder in the result folder for the drawings of each part that was checked as code single part.



Database Backups



Automatic Database Backups

Checking this box will force Router-CIM Automation Suite to back up the databases when Router-CIM Automation Suite is loaded for the first time each day. The databases will be stored in a folder on your C: drive for later restoration.  The folder is C:\Router-CIM\Automation\Database\Backups or you can set the folder that you would like the backups to go to. Inside that folder will be a other folders with the date and time stamp as a name. These contain the databases for your system that were present on that date.



This backup happens once each day, on the first start of Router-CIM Automation Suite, so the database is backed up in the state it was in when last used.



These back up files can be large and if you do not clean out the Backups folder, you can have many, many large files in there. This could take considerable drive space.  These files could be copied onto a CD or some other permanent storage frequently and this folder cleaned of old, out of date files.



Removing the check from this box will force Router-CIM Automation Suite to ignore the back up procedure.  This is dangerous because if you make a mistake in your settings or jobs, there is no backup copy and no way to retrieve lost data or settings.  CIM-Tech cannot get data back from the database once it is changed. The backup is your best solution to retrieving lost settings or materials, etc.



Automatically Delete Old Backups

These back up files can be large and if you do not clean out the Backups folder, you can have many, many large files in there. This could take considerable drive space.  These files could be copied onto a CD or some other permanent storage frequently and this folder cleaned of old, out of date files.



If Automatic Database Backups is enabled, this option will continue to create backups and keep the files in the defined location



Settings_System_Folders_DBOld2



If this option is enabled, you will be able to define the amount of days to keep the database backup files. Use the up and down arrow to adjust the amount of days that you would like to keep the database backup files for.



Settings_System_Folders_DBOld



Backup Folder

This is the path to the folder where you store your 'Automatic Database Backups'. The folder, by default, is C:\Router-CIM\Automation\Database\Backups. You can set this to a shared drive location by identifying the file path you would like.



Settings_System_Folders_DBBackupLocation



The 'Backup Location Is A Network Share' option will automatically be checked by Router-CIM if it sees that the location is a shared drive.



Note: Shared folders must have a mapped drive letter.



Please refer to the 'Restore New' or 'Restore Over' section for information regarding bringing in a backup database.



Retain Following Output Files & Folders:



File Types:

 Label Files - Checking this box will retain the created label files.

 Touch and Print Files - Checking this box will retain the created Touch and Print files.

 Schedule Files - Checking this box will retain the created schedule file.





Folders:

 Label Folder - Checking this box will retain the created label folder (if selected under 'Create subfolders for the following files').

 Anest Parts Folder - Checking this box will retain the created Anest Parts folder.

 Anest Tasks Folder - Checking this box will retain the created Anest Tasks folder.

 CodeSingleDWGs Folder - Checking this box will retain the created CodeSingleDWGs folder (if selected under 'Create subfolders for the following files').

 NestedDWGs Folder - Checking this box will retain the created NestedDWGs folder (if selected under 'Create subfolders for the following files').

 Misc Folder - Checking this box will retain the created Misc folder.
