You may use an AutoCAD Tool Palette to show a list of available parts. The steps involved in using a tool palette are:
1.In the Insert Ribbon in AutoCAD select the Design Center
2.Select the drawing that was previously exported by Solid-CIM 3D and saved.
3.Right-Click on the drawing name and select Create Tool Palette.
4.A Tool Palette will appear
5.Close the Design Center
The Design Center with the desired Solid-CIM 3D drawing.

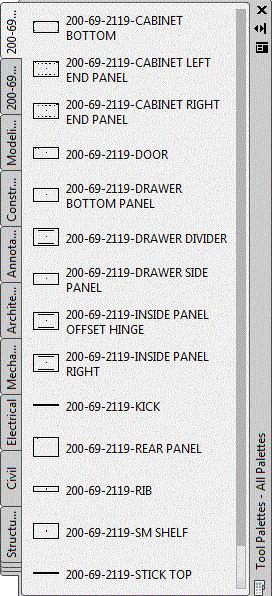

The tool palette created will look like this:
Each item in the tool palette is a part name with an icon that represents a profile of the part assigned to the part name.
