Overlap Amt.



Overlap_Amount_CP

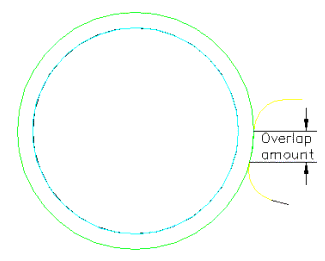

Overlap is the amount the tool travels in the cut beyond the start point before leading out of the cut.  By default the Overlap amount is equal to the diameter of the tool (AUTO). You are able to specify a larger or smaller amount for this by placing a value in this field. For instance, if you are using a 0.5" router bit, the Overlap distance is 0.5". If you put 1.0 in the Overlap Amt. field then the Overlap will be 1.0".

Overlap_Example
