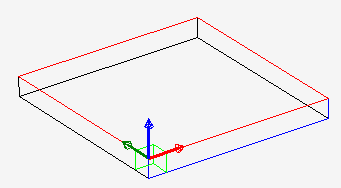

The ToeKick Operation consist of a cut that starts at the edge of the panel. Then travels perpendicular to the edge at a distance of Width. Then travels parallel to the edge at a distance of Height. The cut has a depth of Depth. In this example, the ToeKick references the Lower Left corner and is a 1 x 1 cut with a depth of 1.
|•||Width - width of ToeKick in X|
|•||Height - height of ToeKick in Y|
|•||Depth - depth of ToeKick in Z|

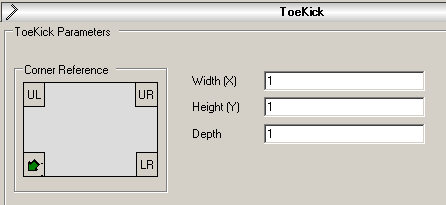

|•||Corner Reference - the corner(s) reference for the ToeKick.|
Multiple corners can be selected. A ToeKick will be developed at each corner selected. The default corner is the Lower Left.
All three parameters must be present to validation properly.
Reference the Sides, Corners and UCS for details.
Condition and Record Data
Reference the Editor Interface for details.
