Intersect Cutting



Intersect Cutting will create a separate profile tool path at the intersection of each surface to create a smooth transition at these locations.  This can also be useful to remove material in an area where a larger tool was used and left more material on the part than desired.

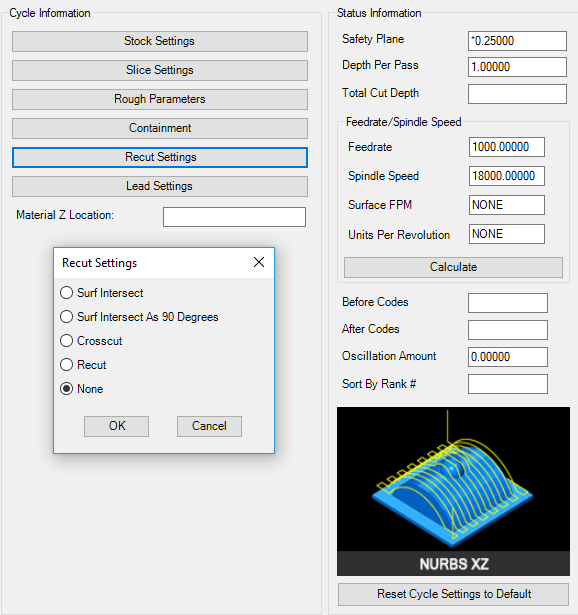

Nurbs_Recut_Panel



Surf Intersect



Shown below is the MCADTPC.dwg with the Surface Intersect turned on in Recut Settings.



Nurbs_Recut_Panel_SurfIntersect

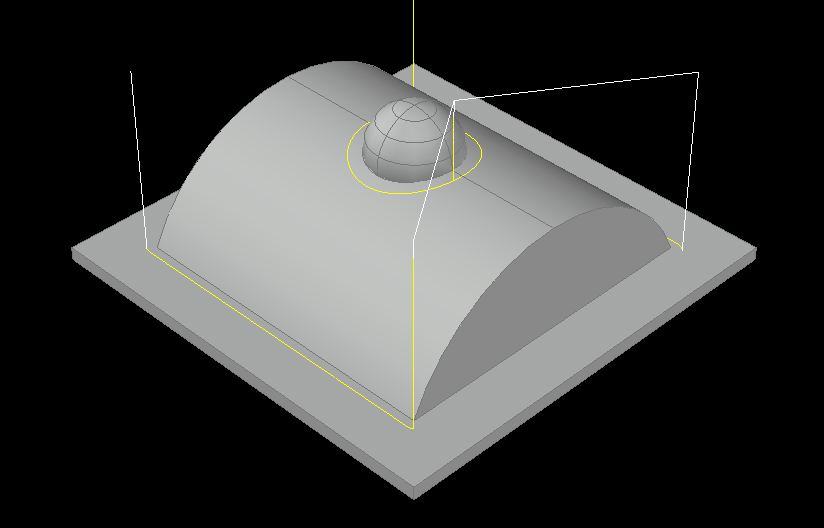

Using these settings produces a tool path result similar to this:



Nurbs_SurfaceIntersect



This is a useful feature when a larger tool is used in a roughing or finishing operation and a smaller tool is needed only at the intersections of any geometry to create a smoother transition from one surface to the next.



Be aware that this tool path does not consider the radius offset of the tool, so if you are creating this cut with a ball end mill, and the zero point for the end mill is the radius of the tool, then a Stock Allowance equal to the radius of the tool should be used to make sure the tool path is lofted and the part is not overcut.



Surf Intersect at 90 Degrees



Using the Surf Intersect at 90 Degrees creates a Zigzag tool path following the intersection of any of the contours on your part.



Nurbs_Recut_Panel_SurfInt90

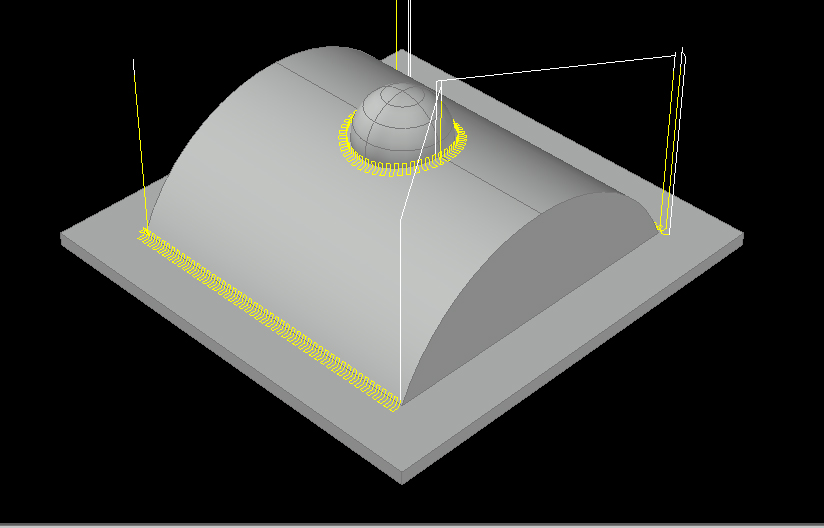

Changing the settings above to use Surf Intersect at 90 Degrees will yield a tool path with these results:



Nurbs_SurfaceIntersect_90deg



These motions will create many more moves than the first Surf Intersect, resulting in more NC Code, but possibly a smoother transition.  The Slice Spacing will usually be changed to yield a much smaller scallop on the part.



Crosscut



Nurbs_Recut_Panel_Crosscut

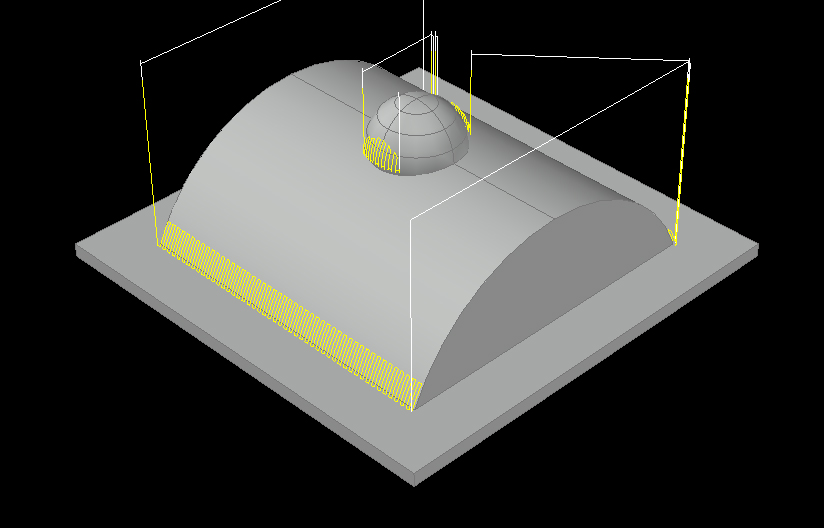

Using these settings produces a tool path result similar to this:



Nurbs_Crosscut



Recut



Nurbs_Recut_Panel_Recut

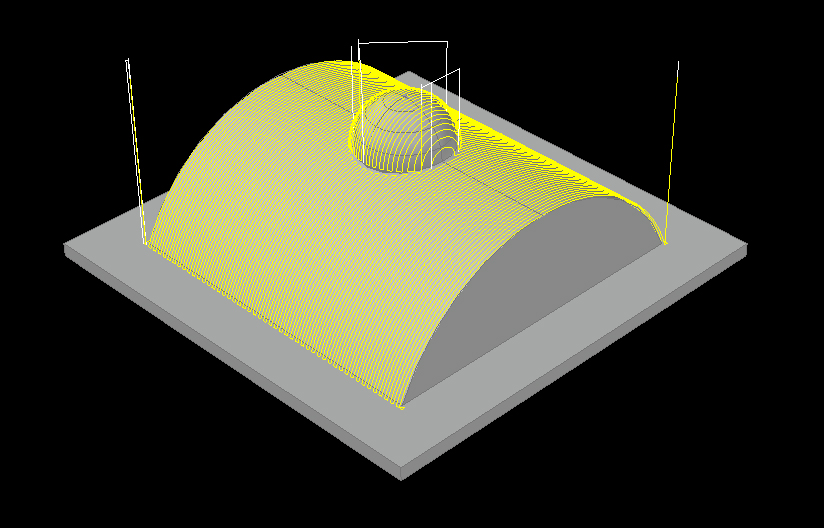

Using these settings produces a tool path result similar to this:



Nurbs_Recut_Example
