How to access the Router-CIM Toolbar in AutoCAD



To access the Router-CIM Toolbar in AutoCAD, follow these steps:



Once AutoCAD is open, go to the AutoCAD Menubar:



ACAD_Menubar



The Menubar is File - Edit - View and so on located at the top of the AutoCAD window.

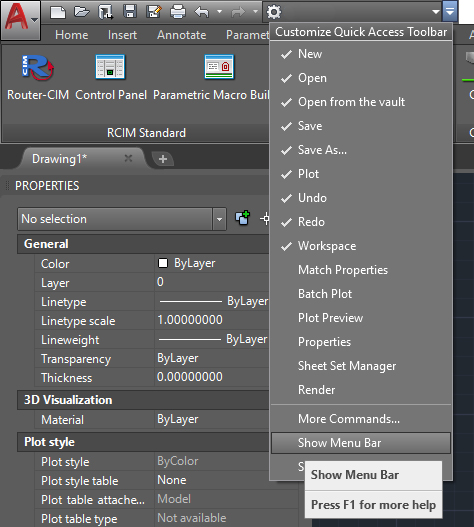

If you do not see the Menubar, go to the drop-down arrow beside your workspace settings and select the 'Show Menubar' option. You can also type Menubar into the AutoCAD command line and change the setting to 1.



ACAD_Show_Menubar



Or:



ACAD_Show_Menubar_Command



Once the Menubar is visible, select the 'Tools' option, then 'Toolbars'. In the flyout menu, select 'Router-CIM Menu' and then the 'RCIM' option.



ACAD_Toolbars_RCIM



This will open the Router-CIM toolbar:



RCIM_Toolbar_ACAD



At this time you should repeat the process for the RCIM Group Shapes, RCIM Solids and ANESTR toolbars as well.



RCIM Group Shapes Toolbar:



RCIM_Group_Toolbar



RCIM Solids Toolbar:



RCIM_Solids_Toolbar



ANESTR Toolbar:



ANESTR_Toolbar
