Router-CIM Interactive - Start Router-CIM in AutoCAD



To program with Router-CIM within an AutoCAD drawing, you need to start Router-CIM within the drawing.



First, open a new session or the drawing file in AutoCAD that you would like to program.



To start Router-CIM within an AutoCAD drawing, switch to the Router-CIM Ribbon bar or use the Router-CIM Toolbar:



Note: If you want to use the toolbar and you do not see it in the current version of AutoCAD, go to the Router-CIM Toolbar section.



Ribbon Bar:



RCIM_Tab_ACAD

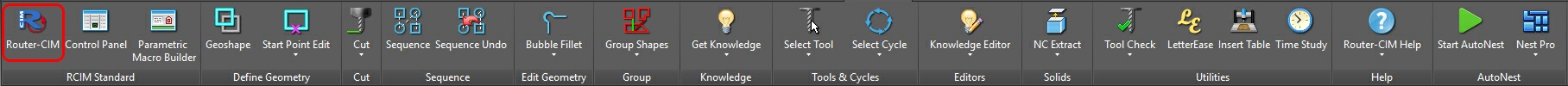

Then select the far left icon in the ribbon bar:



RCIM_Ribbon_Start



Or select the far left icon on the Toolbar:



RCIM_Toolbar_Start



Once you select the Router-CIM Icon, this will open up the 'Configuration Wizard'. Go to the 'Configuration Wizard' section for more information.



If Router-CIM was already started in the current drawing session, this will open up the 'Control Panel'.

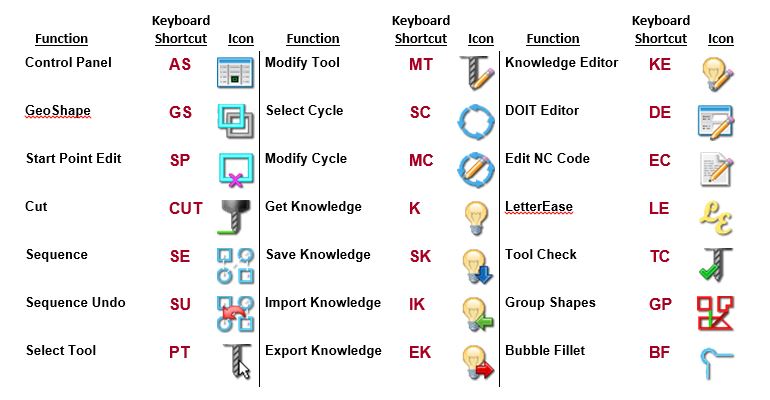

Here is a Quick Reference for the Router-CIM icons and keyboard shortcuts:



RCIM_Quick_Reference
