Output Files



This is the location where you can specify the file extension that you need the NC code file to be. Simply change the 'out' to your required extension. All NC code output files will have this extension.



OutputFiles_Extension





Output File Name

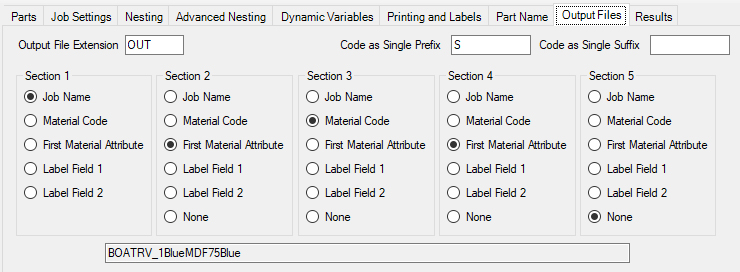

Similar to the Part Name section the Output Files parameters contain 5 sections to allow you to string together names for the Code files that have the proper meaning for you.



OutputFiles



The default name for the code files is set to Material Name.  Using other combinations appends those combinations to the name.  Examples of the name are show below.



Using all 5 fields can create a very long filename, and there are no delimiters between the sections (as some controllers will not allow special characters).

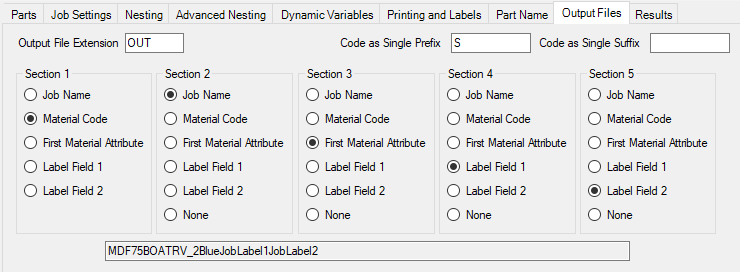

OutputFiles_Example



So this filename would be MDF7512_Boat_Parts_BlueJobLabel1JobLabel2.out



Code as Single Prefix and Suffix

For the code files, they will default with beginning with the letter S. SSample1.out. If you wish to change the prefix or suffix of the single code files, these fields allow you to make the change.



Default Prefix

SSample1.OUT

OutputFiles_Single



Change Prefix

S_Sample1.OUT

OutputFiles_Single_Prefix



Change Suffix

Sample1_S.OUT

OutputFiles_Single_Suffix
