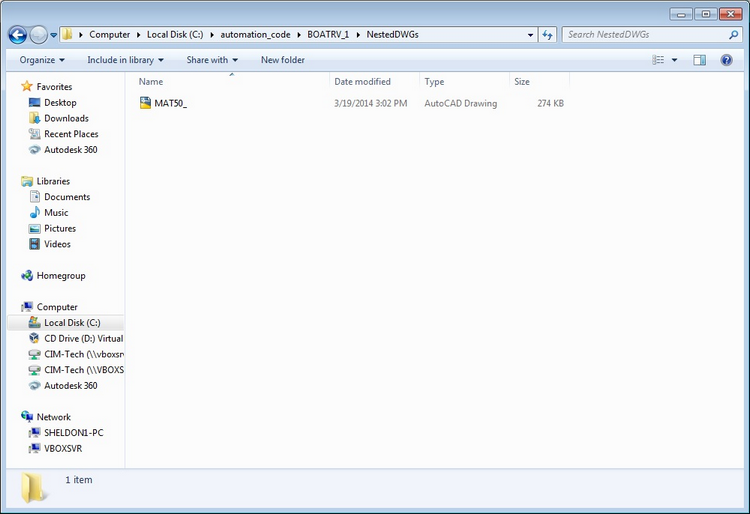

NestedDWGs Subfolder



This folder contains the nest drawing for all the materials in the job.  Each material will have a separate drawing containing all the nests for that material.



The folder will display only if you the selection was made to show this folder located in File/Settings under the 'Systems Folder' tab.



NestedDWG
