RCIM Reporting

The RCIM Reporting feature allows you to customize the reports that are produced by Router-CIM Automation Suite. There are three reports that are customizable: Limits Check Report (Automatic G-Code Scan), Material Usage Report and the Scrap Report.

For information on modifying these reports, please refer to the 'Fast Reports' help manual.

Tools-RCIM-Reporting1

Limit Check Report

The Limit Check Report is associated to the report created by the 'Automatic G-Code Scan' when the 'Print' option is selected.

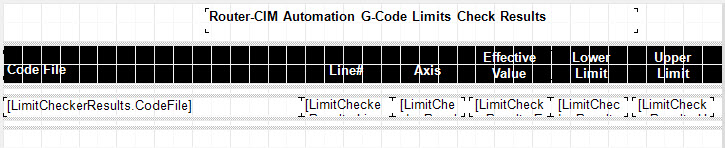

Edit Mode:

Tools-Limit-Check2

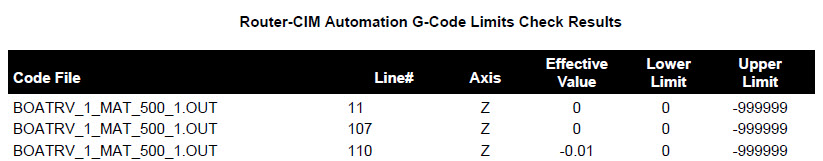

Result:

Tools-Limit-Check1

Material Usage Report

The Material Usage Report is associated to the 'Material Usage Report' under the 'Printing and Labels' tab.

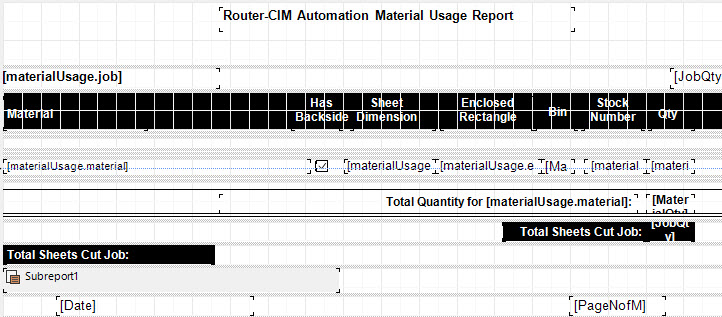

Edit Mode:

Tools-MatUsageReport2

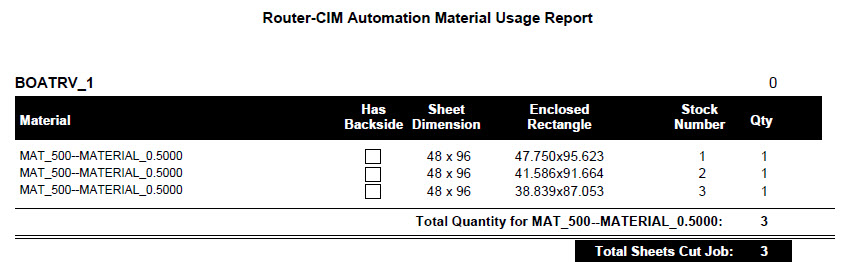

Result:

Tools-MatUsageReport1

Scrap Report

The Scrap Report is associated to the 'Export Scrap Inventory' located in the 'Material Database'.

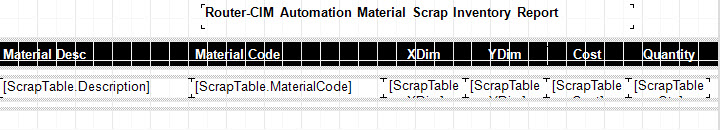

Edit Mode:

Tools-ScrapReport2

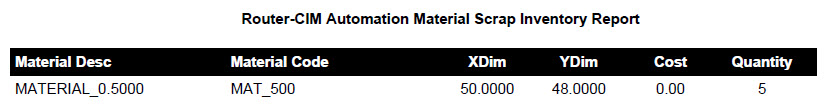

Result:

Tools-ScrapReport1
