Make NC Code



Make NC Code develops an NC Code file for a selected sequence



To define the options for developing the NC Code see the section NC Code Options section.



This command uses the programmable postprocessor through the task function ncpp_seq_nccode.

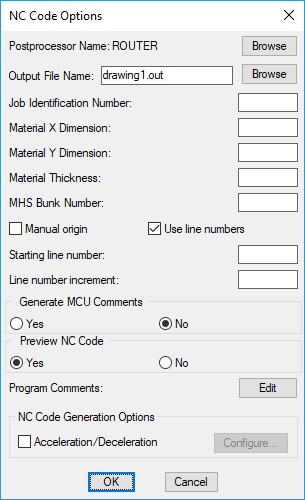

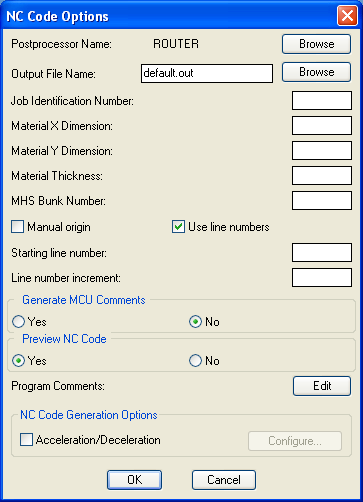

When selected, click on the Options button to the right and a NC Code Options dialog window will appear. From this screen you will have the following options:



Sequence_MakeNCOptions





Most of these settings have NC System Variables that control their use.

*POST* - postprocessor name

*NCFIL* - output filename

*NCFILEXT* - output filename extension

*NCFILLOC* - output file directory

*JOBID* - job identification number

*VIEWCODE* - Preview code option

_ACC_DEC - Acceleration/Deceleration option



Any or all of these can be defaulted by using the NCVAR command.
