Edit Knowledge



Router-CIM Toolbar:   EditKnow_Toolbar_Icon



Router-CIM Ribbon: EditKnow_Ribbon_Icon



Keyboard:        KE



Control Panel:



Knowledge_CP_Edit





Editing a Selected Knowledge

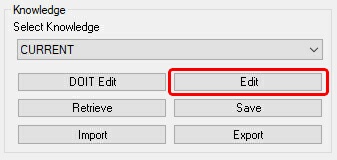

Selecting this icon from the Router-CIM toolbar will bring you to the interface below.

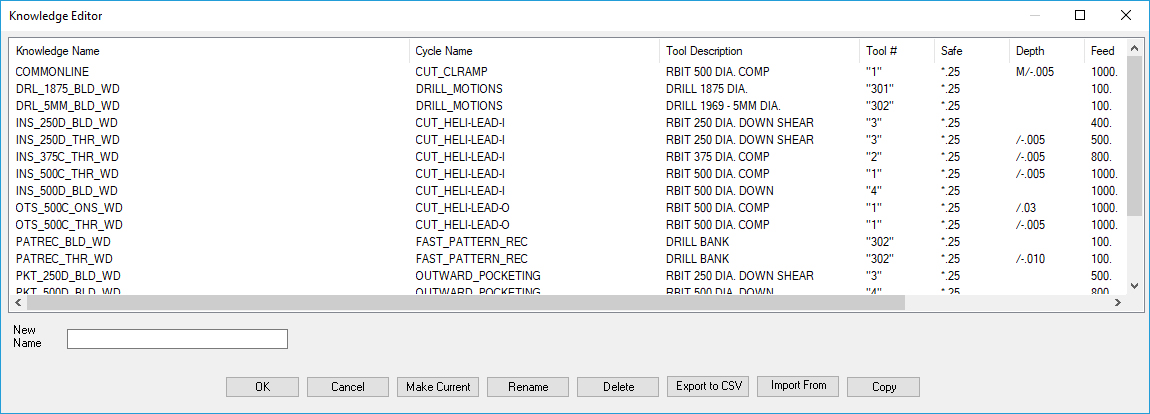

This displays the Knowledge Editor.



EditKnow_CP



Using the Knowledge Editor



Knowledge Quick Edit



The Knowledge Quick Edit will allow you to change certain parameters of the selected knowledge and re-save it to the list without changing its name.  This has the benefit of allowing you to change items like a tool number or tool, and then be back in the Knowledge Editor with those changes saved.



Select a knowledge from the list so that it is highlighted.

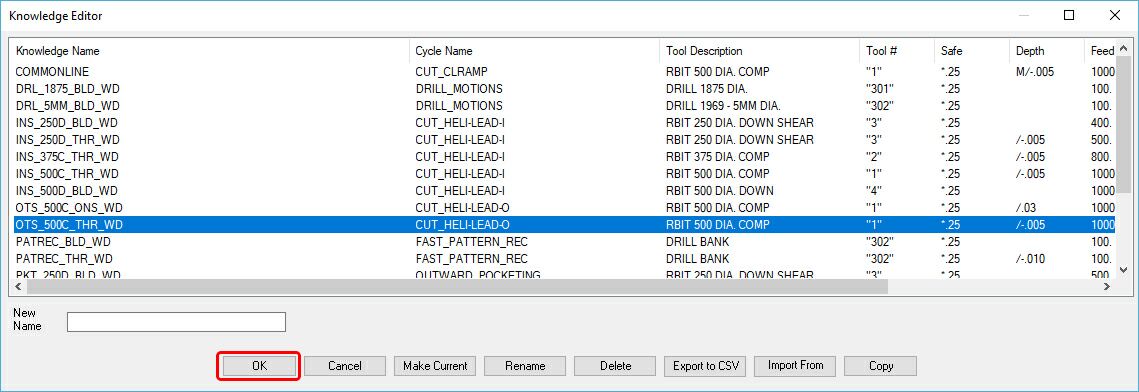

EditKnow_CP_Edit



Now select the 'OK' button.

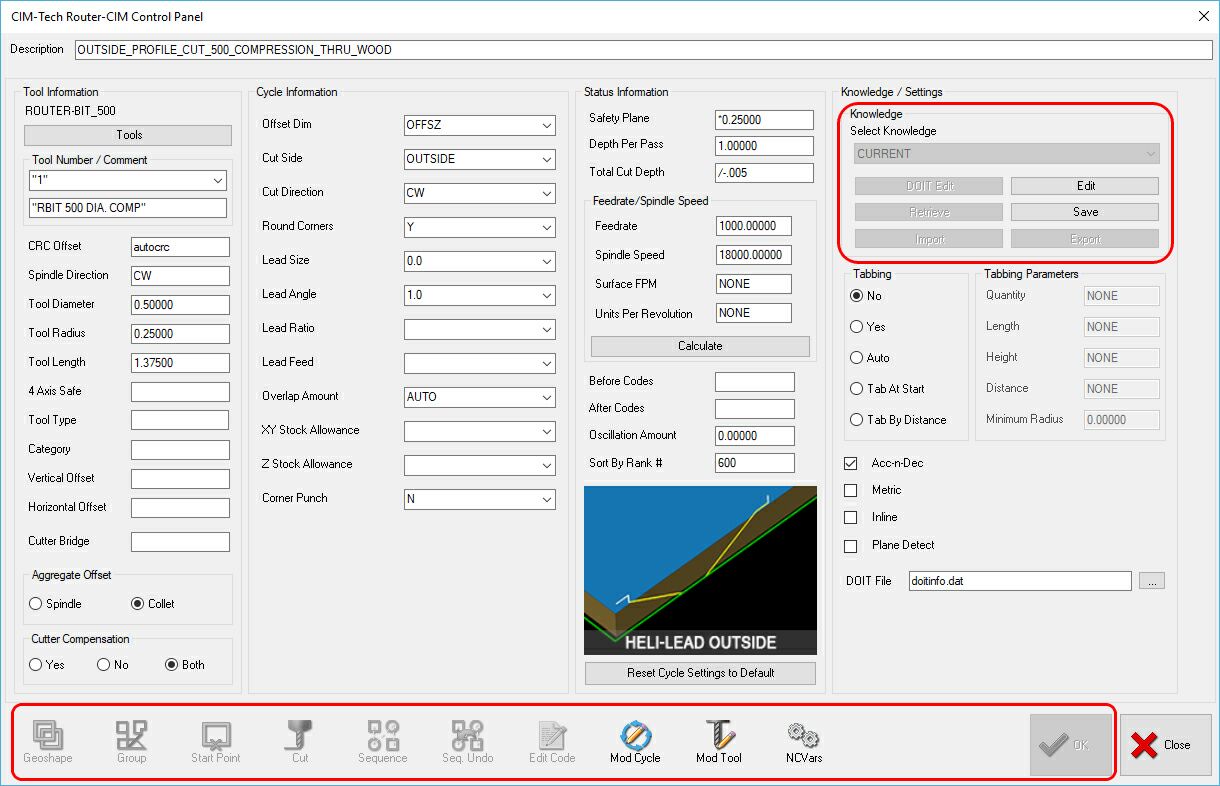

The Control Panel is displayed, with only certain items available to you.  You can change a tool, tool description, cycle, cycle parameters.  You cannot Geoshape, Start Point Edit, even Cut is not allowed.



EditKnow_CP_EditCP

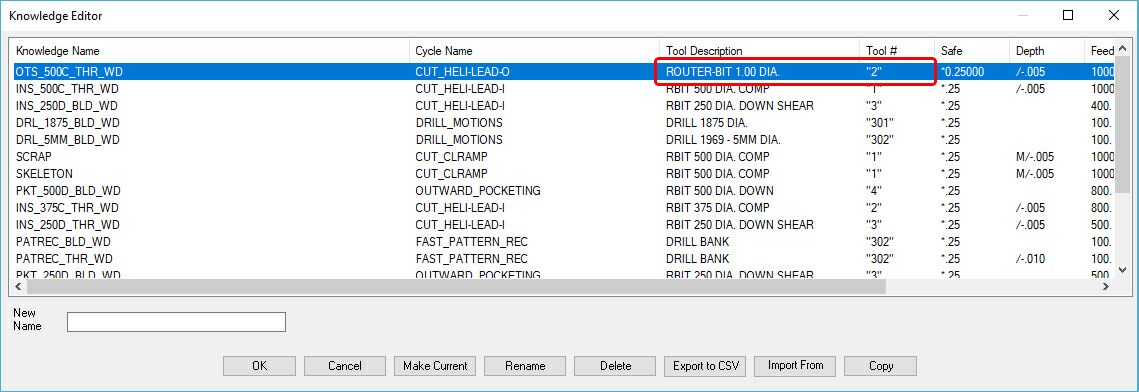

Change the tool to a 1" end mill and the description, and click on 'Save' in the Knowledge section, and you are returned to the Knowledge Editor with your changes intact.



EditKnow_CP_Edit2





When no Knowledges are selected, click on 'OK' to leave the Knowledge Editor.



Making a Knowledge Current

To make a Knowledge current in the Status Page, select it from the list so that it is highlighted.

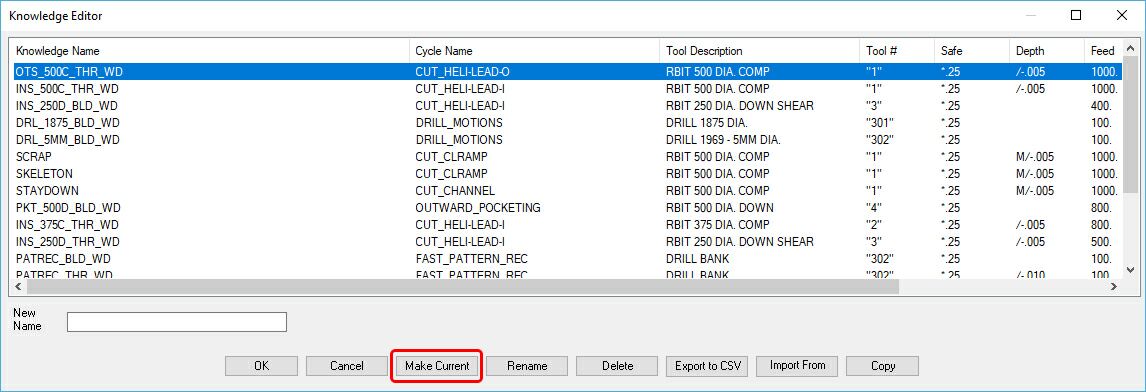

EditKnow_CP_MakeCurrent



Then select 'Make Current', and the knowledge will be shown on the Control Panel.



EditKnow_CP2





Rename a Knowledge

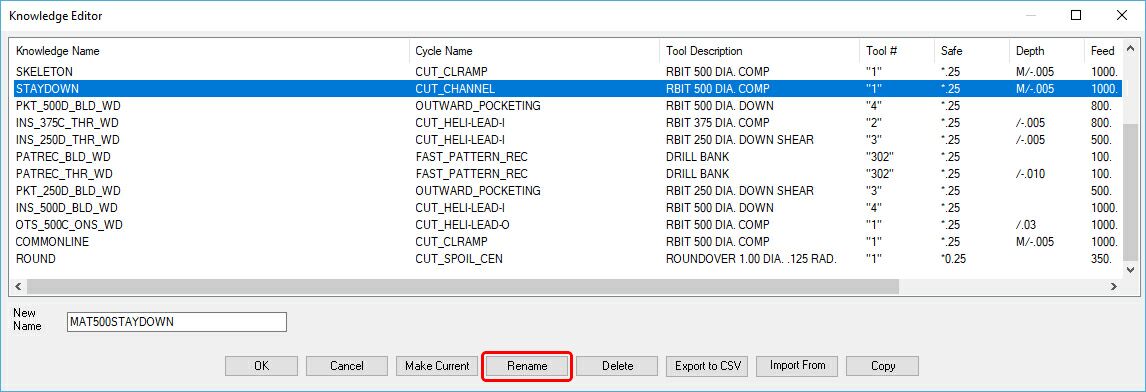

To Rename a Knowledge, first select it in the window to make it current, then enter the new name in the appropriate box at the bottom left of the window.



EditKnow_CP_Rename



Click on the 'Rename' button



EditKnow_CP_Rename2



The knowledge now appears in the list under the new name.





Deleting a Knowledge

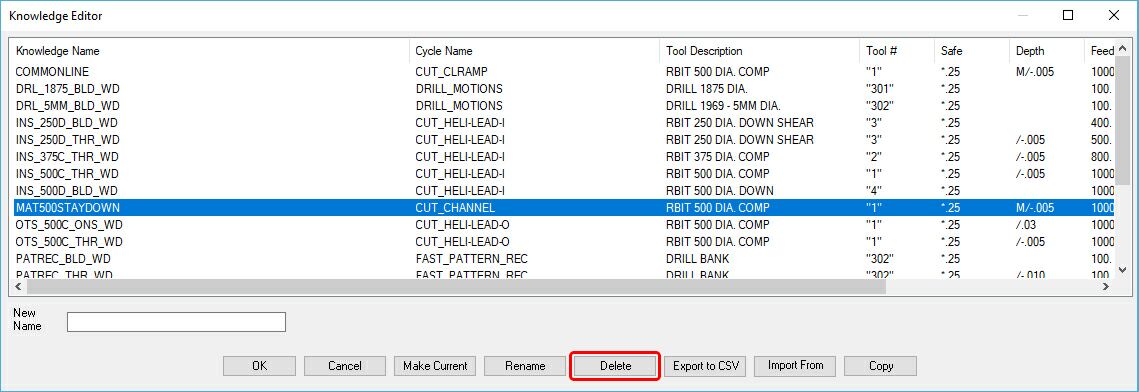

Delete a Knowledge by selecting it in the window to make it current and then click on the 'Delete' button.



EditKnow_CP_Delete



The Knowledge is deleted from the available selections.



EditKnow_CP_Delete2



Export to CSV



The Export to CSV will create a comma delimited file that can be used as a back-up or import into another Knowledge drawing.

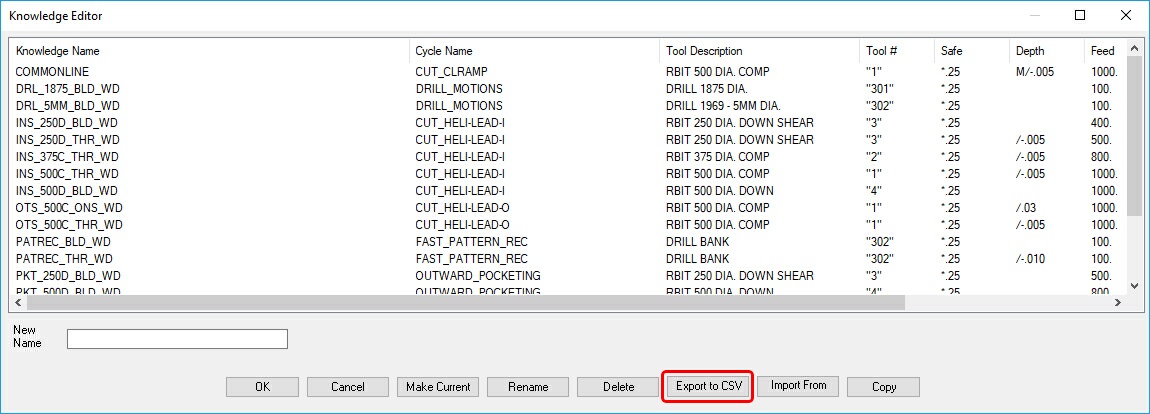

EditKnow_CP_ExportCSV

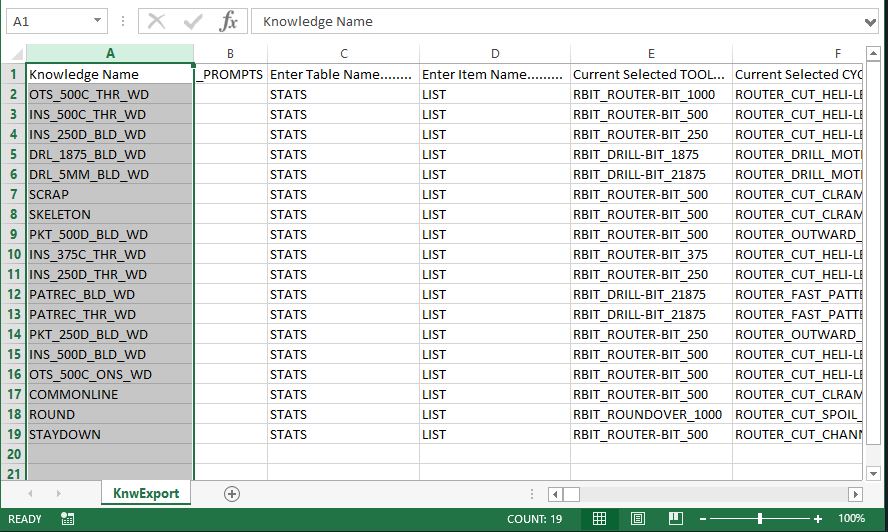

You will be prompted to for a name and a save location and then the CSV will be created:



ExportKnow_CSV



Import from CSV



The Import from CSV will bring in a comma delimited that was created by the Export to CSV option.

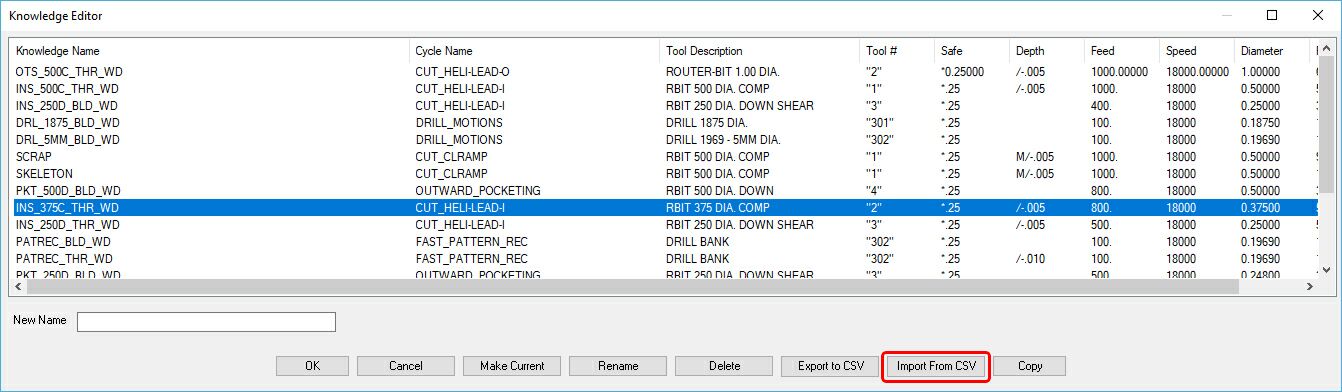

EditKnow_CP_ImportCSV





Copy a Knowledge

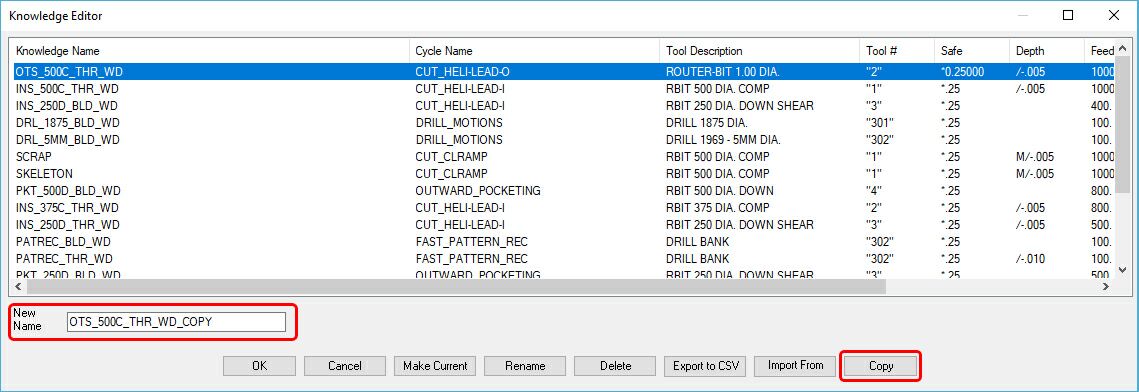

To copy a selected knowledge, highlight the knowledge that you want to copy, type in a new name for the knowledge in the 'New Name' field and select the 'Copy' button.



EditKnow_CP_CopyKnw

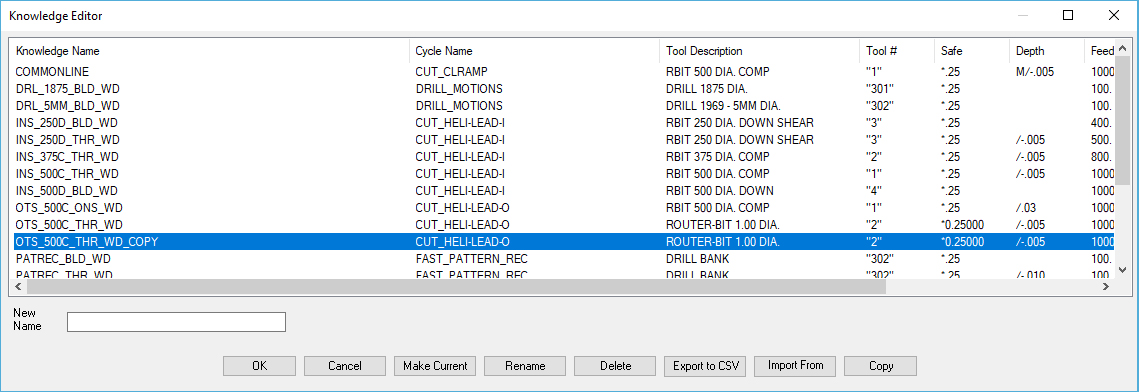

The copied knowledge will now appear in the Knowledge Name column available for use or editing.



EditKnow_CP_CopyKnw2
