Define Label Outputs

Once a Sheet Layout and the labels have been created, you will  need to define the output files that you are looking for.

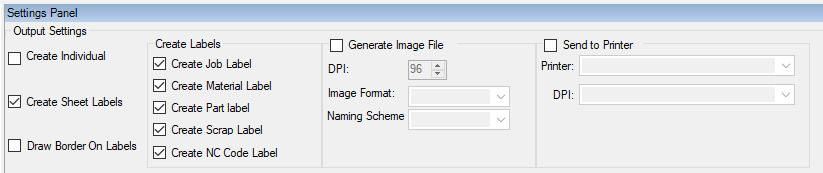

Label_Settings_Output_Settings



There are 2 types of outputs you can use:

1) Create Individual Labels

2) Create Sheet Labels (Requires a Sheet Layout)



Create Individual Labels

Create Individual Labels will produce image files and/or be sent directly to a printer.

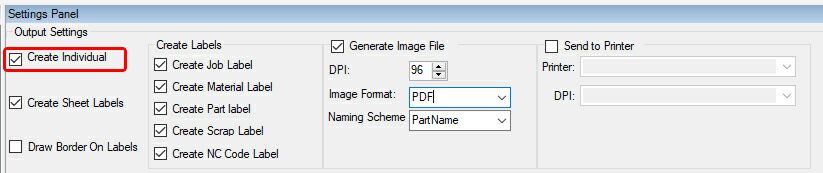

Label_Settings_Output_Individual



Create Sheet Labels

Create Sheet Labels will produce image files and/or be sent directly to a printer



Label_Settings_Output_Sheet



Generate Image File

When 'Create Individual Labels' and/or 'Create Sheet Labels' is selected, you can output them as image files.

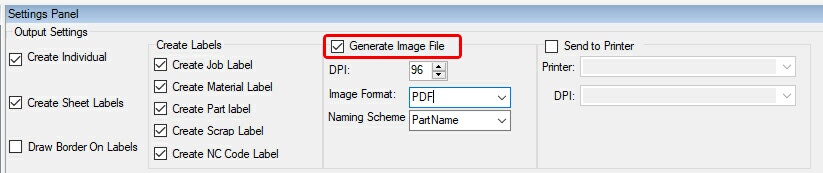

Label_Settings_Output_GenImage



When generating image files, you will need to define:

1) DPI (dots per inch) for clarity

2) Type of Image Format

 a) BMP

 b) GIF

 c) JPG

 d) PDF

 e) PNG

 f) TIFF

 g) WMF

3) Naming Scheme

 a) PartName

 b) Innoagg (only to be used by users that have this add-on option)

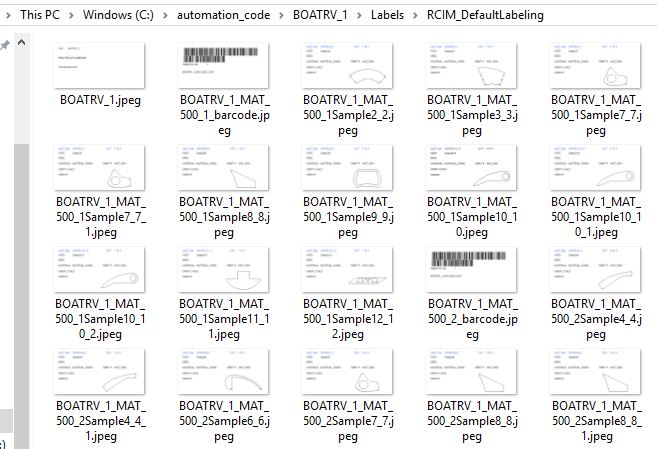

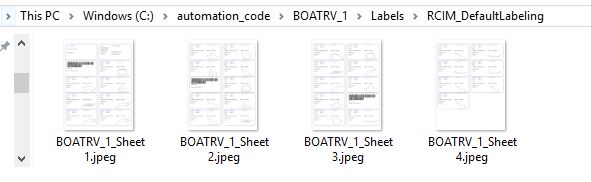

The 'Generate Image File' option will create the images in the Router-CIM Automation Suite output folder once the job has completed. From this folder, you can print or move the files.



Label_Settings_Output_GenImageFolder



Label_Settings_Output_GenImageSheet



Send to Printer

When 'Create Individual Labels' and/or 'Create Sheet Labels' is selected, you can output them directly to a printer.



By checking the 'Send to Printer' box, you will define the printer that you want the labels to be printed to and the DPI.



Options for DPI are:

 1) High

 2) Medium

 3) Low

 4) Draft

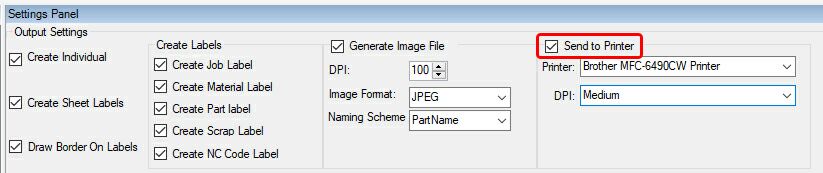

Label_Settings_Output_Print



The 'Send to Printer' option will print the labels from Router-CIM Automation Suite once the job has completed.
