Simulation Files

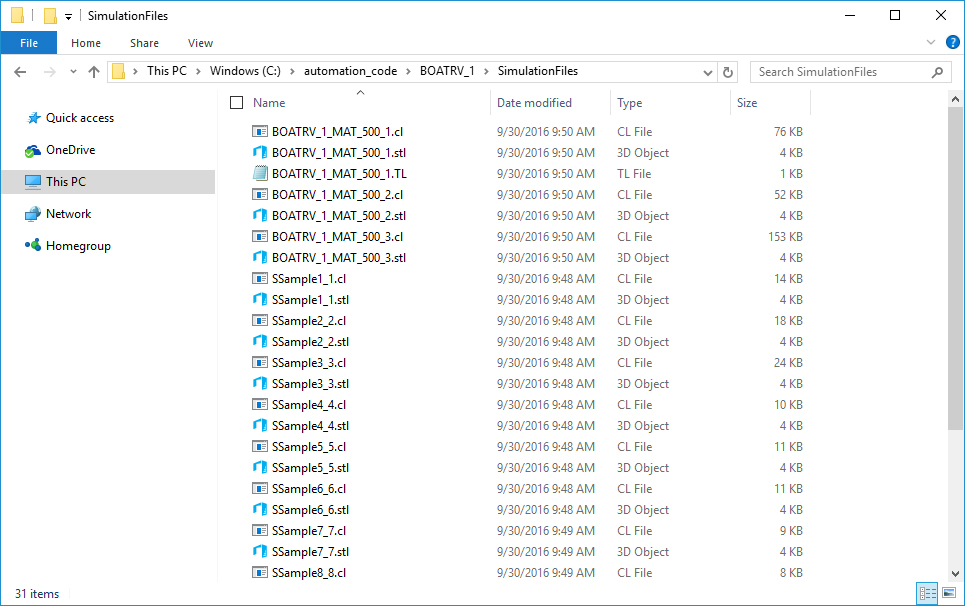

This folder contains the simulation files needed for CutSIM. Each file will be for a 'Code as Single Part' and for any nests that were created.



The name of the CutSIM files will match your Part Name and Output file settings.



The CutSIM file is the .CL file. The .STL and .TL files are used for the stock and tool definition in the CutSIM program.



Note: This folder will only display if you have the CutSIM software by CIM-Tech.
