Pattern Systems





Pattern Systems software allows the creation of layered DXF files for import.  Once the DXF Files have been made, Pattern Systems will also create a Job File that describes the material used, the part names, quantities, edge treatments, etc.  That Job file can be selected and Router-CIM Automation Suite will import the files into a Router-CIM Automation Suite job.

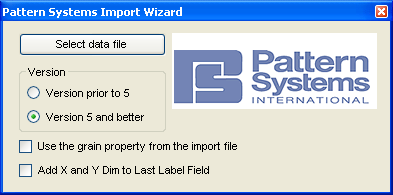

Select the Pattern Systems Wizard and a window will appear allowing you to select the data file from Pattern Systems.  Click Select Data File.





Rc2009__123

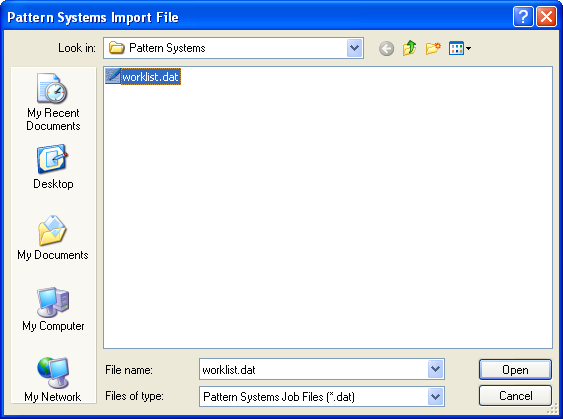

A new window will appear allowing you to navigate to the folder where the job and DXF files you made with Pattern Systems are stored.





Rc2009__124





Select the data file and click on Open.  The files will be imported into Router-CIM Automation Suite as a job in the current folder.
