Outside Corners

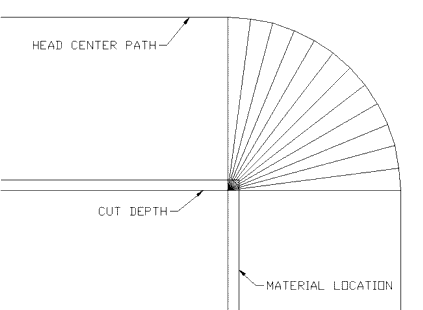

To get around an outside corner, the corner is cut with a rounded motion. The Head Center Path will swing around the corner while the tool tip remains stationary at the corner point. The following illustration shows this path.



clip0084
