Justify Text



The justify command will allow you to force the text to be aligned in a specific way on your shapes as it is being entered.

You can have text Right Justified, Left Justified, Middle Justifed, or spaced to fit in a specific area.

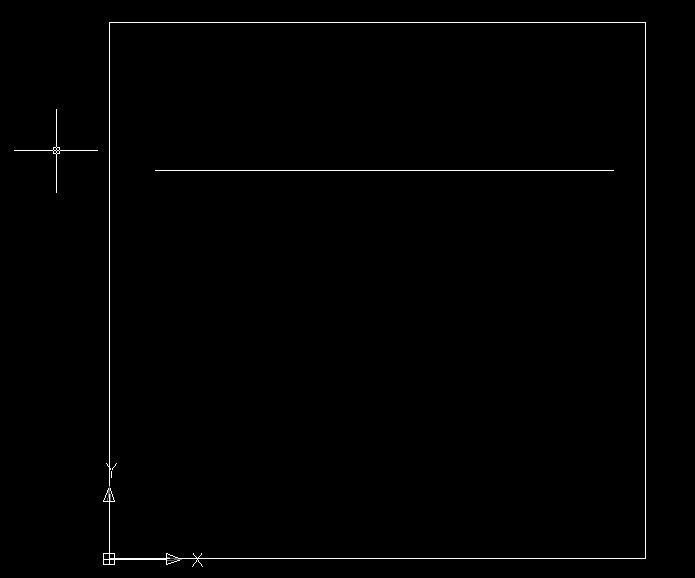

For example, to have text Left Justified to a polyline on the screen, you can enter text in this method.



LE_049



Select the LE Button and at the prompt, select 'J' for Justify.  You will see the following prompt at the command line.



LE_050



Type 'L' for Left (or just press Enter) and you will be prompted for the Start Point.



LE_051



Using your OSNAPS in AutoCAD, select the Left Endpoint of the line.



LE_052



You will then be prompted for the Text Height.



LE_053



And the Rotation Angle.



LE_054



And then you can enter your text.



LE_055

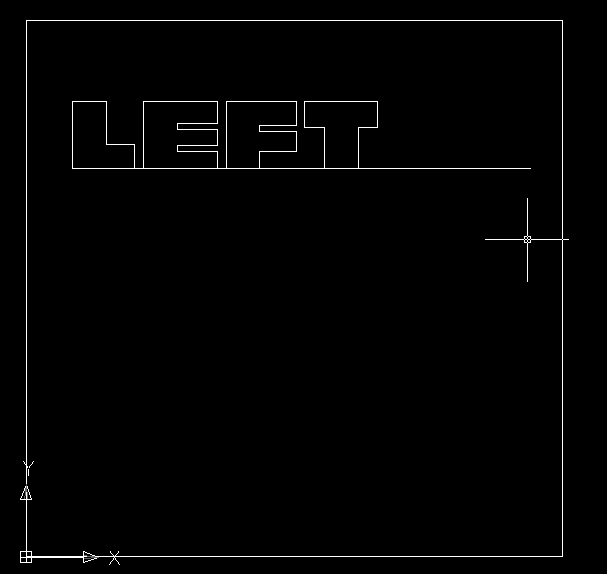

It should then appear to start from exactly the left end of the line where you picked the start point.



LE_056







There are other prompts for Justify as well.

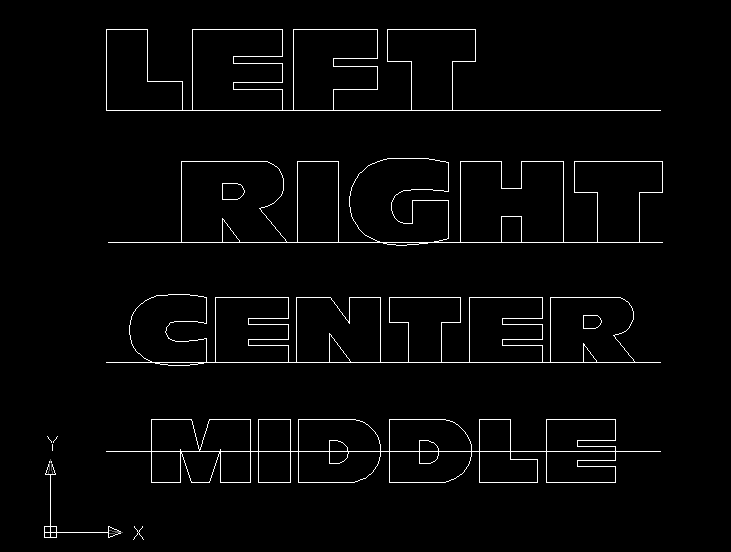

They are for Right, Center, Middle...



LE_058

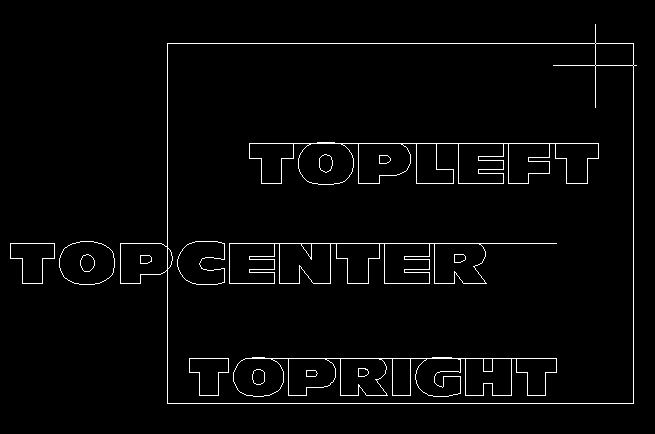

As well as Top Left, Top Center, and Top Right...



LE_059

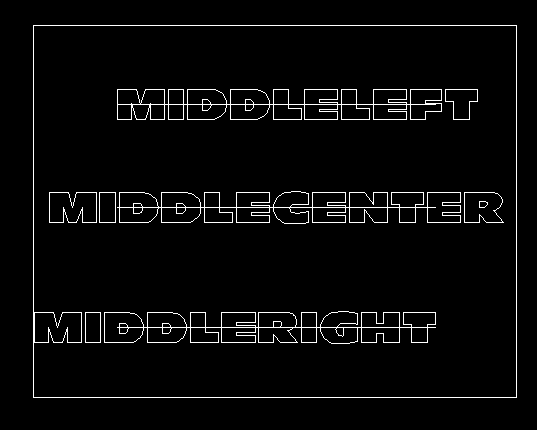

And, Middle Left, Middle Right, Middle Center...



LE_060

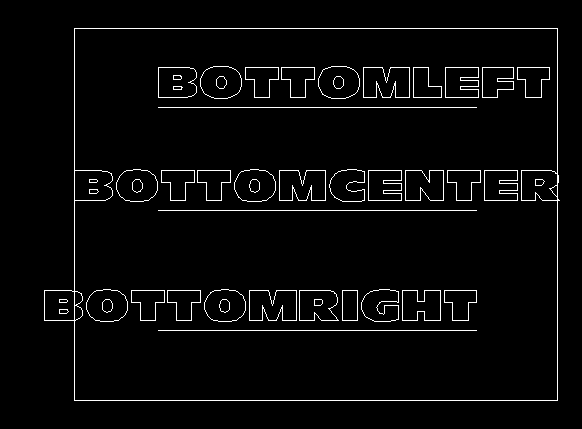

And finally, Bottom Left, Bottom Center, and Bottom Right.



LE_061





There is one final method.  That is 2P, or Two Points.

Using this method you would pick two points and the text would be fit between those two points (if possible).
