Cutting Text (LetterEase)



Cutting text involves the use of a tool called LetterEase. This tool can be selected from the Router-CIM toolbar. Letterease allows you to select different text styles, and then explode them into lines and arcs so that you can Geoshape and cut.



Router-CIM Toolbar:   LetterEase_Toolbar_Icon



Router-CIM Ribbon: LetterEase_Ribbon_Icon



Keyboard:        LE

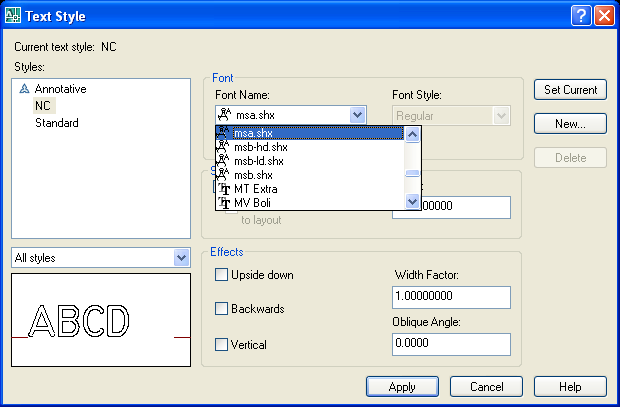

To use the standard Fonts that come with AutoCAD, select a Text Style.



rc008_003



From the Text Style box, you can preview and select a new text style, set the height, width, angle, etc. for your new lettering.



Next apply the lettering to the drawing with the DTEXT (Draw > Single Line Text).



rc008_005





You can Geoshape this text, after you explode it.  To explode the text, pick the LE button on the Router-CIM toolbar.



rc008_006



Type X for Explode to convert the text to polylines and polyline arcs.



rc008_007

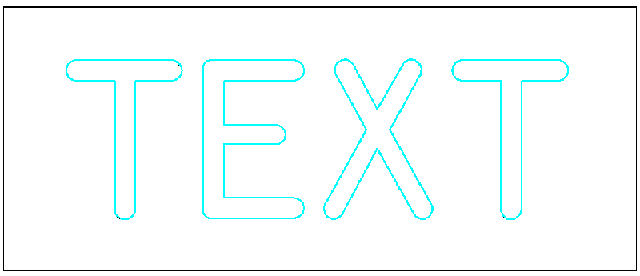

Once the text is exploded, you can Geoshape the text to make it ready for cutting.



TEXT2

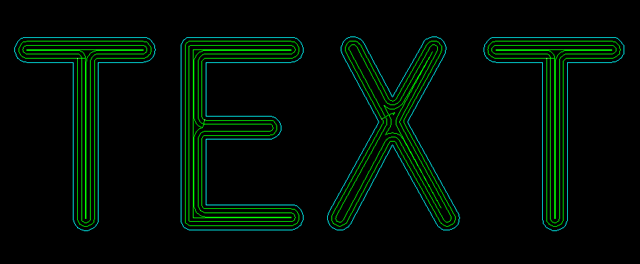

Once the text is Geoshaped, select a tool, cycle and set the status information to create tool paths.



rc008_008
