Render Interface

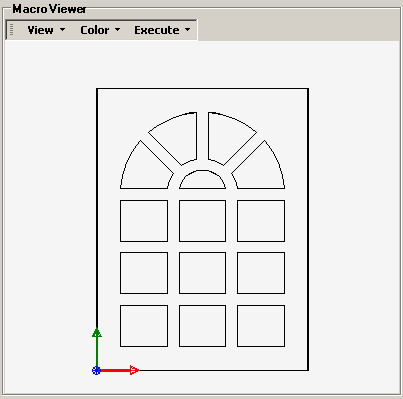

The Viewer displays the graphic results of the evaluated geometric operations.

Mac_Viewer_Overview

Features available include:

Highlighting of currently selected operation
Visual selection of an operation
3D orbit rotation in a single mouse motion to view all sides of the Macro
Panning
Zooming
Full control of color options for all aspects of the operations and the display
Right-Click shortcut mouse menu for ease of navigation
XYZ Axis indicators

X Axis - Red axis indicator

Y Axis - Green axis indicator

Z Axis - Blue axis indicator



By placing the mouse over the Viewer activates the Viewer commands.

Selecting an Operation - position the cursor over the desired operation and click the left button. The operation will change to a highlighted color and the Explorer and Editor will select the operation. Selection can occur at any rotation, scale or panned location.

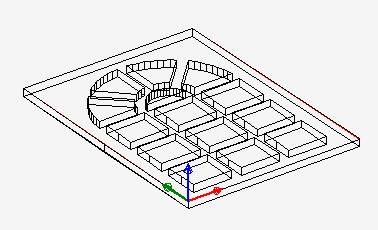

3D Orbit Rotate - position the cursor over the image and press and hold the left button. The 3Dmovearrowcursor will appear.



Mac_Viewer-3DOrbit

Use one of the following methods to orbit around the objects:

To rotate along the XY plane, drag the cursor left or right
To rotate along the Z axis, drag the cursor up and down.
To rotate using both XY plane and Z axis, drag the cursor in a diagonal direction back and forth.

Release the left button to stop the rotation.

Shown view was rotated by moving the cursor from the lower left to the upper right for a short distance.

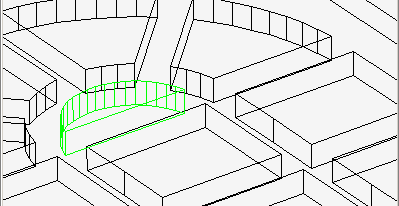

Zooming - by rotating the mouse wheel the image is zoomed in and out. Forward rotation of the wheel zooms in and backward rotation of the wheel zooms out.



Mac_Viewer_Zoom

Shown view was zoomed in by rotating the mouse wheel forward. Also, the left button was clicked over the half-moon feature and is selected. The selected operation is drawn in the highlighted color.

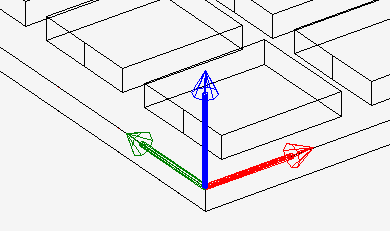

Panning - by pressing and holding down the mouse wheel and moving the mouse panning is performed. A pan moves the operations in the direction of the mouse movement. When panning the cursor changes to a PanningCursorimage.



Mac_Viewer_Pan

Shown view was panned down to view the axis indicators.

Right-Click Short Cut Menu - a right click while on the image will show a menu of options to aid in viewing the Macro from different pre-defined directions.



Mac_Viewer_View

View Options include:

Reset - resets the view to top with no zoom or pan.
Iso - Isometric view
Top - Top view
Front - Front view looking along the positive Y axis
Left - Left view looking along the positive X axis
Back - Back view looking along a negative Y axis
Right - Right view looking along a negative X axis
Axis Off - turns off the axis indicators. Toggles Off/On

See Text Operation for "Text On" option.

Color Options - all operations and image colors are user selectable. Any settings of these colors will be saved in the Macro Builder and will be used each time the Macro Builder is run. A reset to the default settings is available.



Mac_Viewer_Color_Options

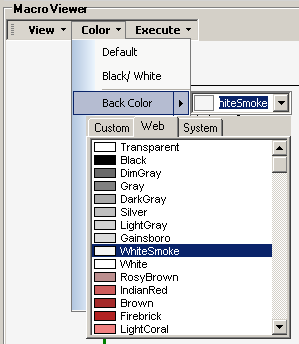

Color selection for all items in the image.

The left image shows the menu options.

The right image shows the color selection

menu.

All color changes are displayed immediately

upon selection.

Mac_Viewer_Color

The color selections used for the Viewer are also the colors that will be used for drawing operations in AutoCAD. See "Execute Drawing and 3D Solid".
