Using the Sample Drawing

There is a drawing name HorizontalBoringSample1.dwg which contains knowledge for each of the 4 cutting methods on each face.  You can use Retrieve Knowledge to look at or export these sample knowledges into your own drawings.



You can download the drawing here.

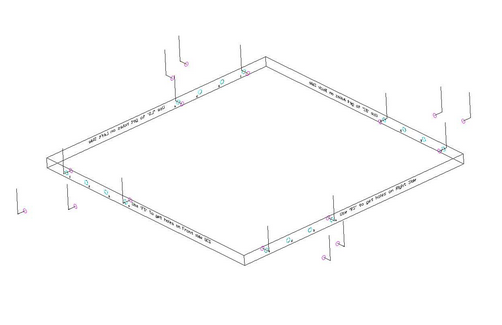

The sample has 4 holes drawn on each face, and one cut on each hole.  Each shape is numbered to show which cut is which and there is text on each side to show which face you are working on.





HorizontalBoringSample1_1



The sample knowledges contained in the drawing are:

FrontSide1

FrontSide2

FrontSide3

FrontSide4

RightSide1

RightSide2

RightSide3

RightSide4

BackSide1

BackSide2

BackSide3

BackSide4

LeftSide1

LeftSide2

LeftSide3

LeftSide4
