Nested Layout Presentation



The options in Nested Layout Presentation will allow you to format the result nest drawing so that the nested sheets are easier to see, read and print.  You are allowed control over a system of layout that has rows and columns, referred to as Horizontal Spacing, Vertical Spacing, and Layouts per Row.





Horizontal Spacing

This is the setting for the horizontal spacing between the nested sheets when repeated horizontally.  This would be similar to the spacing between Columns on a spreadsheet.



Vertical Spacing

This is the setting for the vertical spacing between the nested sheets when repeated vertically.  This feature would be similar to the spacing between Rows in a spreadsheet.



NOTE: If you are using Automated Two-Side nesting, this value will need to be changed to 2.5 or greater.

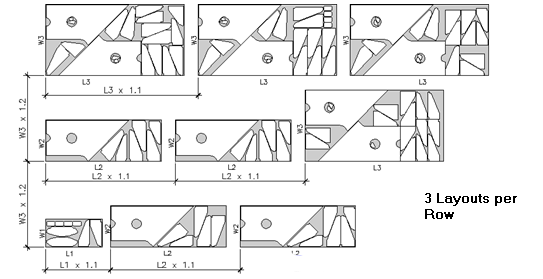

Layouts per Row

This is the number of nested sheets in a row to display horizontally.  The sheets will continue vertically until all sheets are shown.
