Field Caption Settings

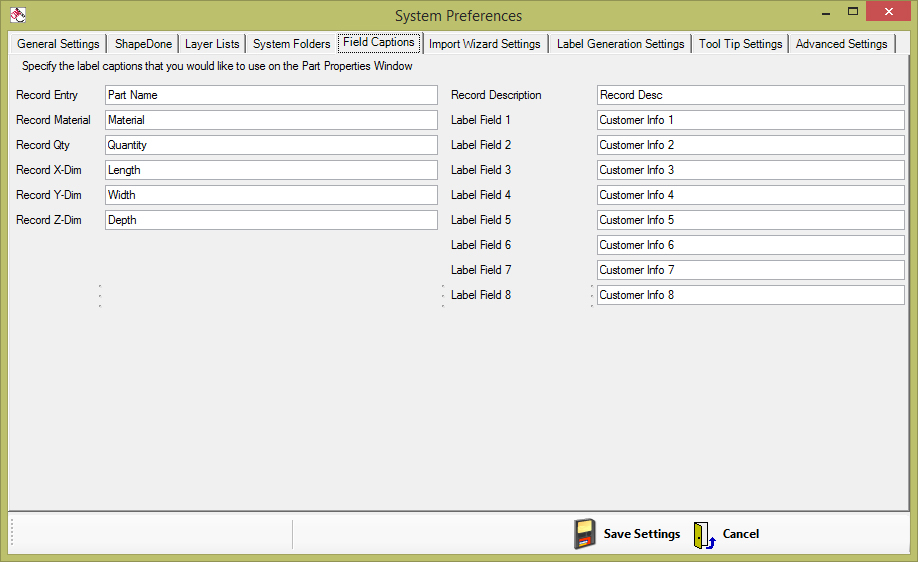

The Field Captions window displays the label captions that are shown in the Part Properties window.  For instance these settings:



Field_Captions_Settings





These settings will display like this on the Part Properties window of any part in a job once they are set.  Select a part and then either double click on it or select Part Properties to see the changes.

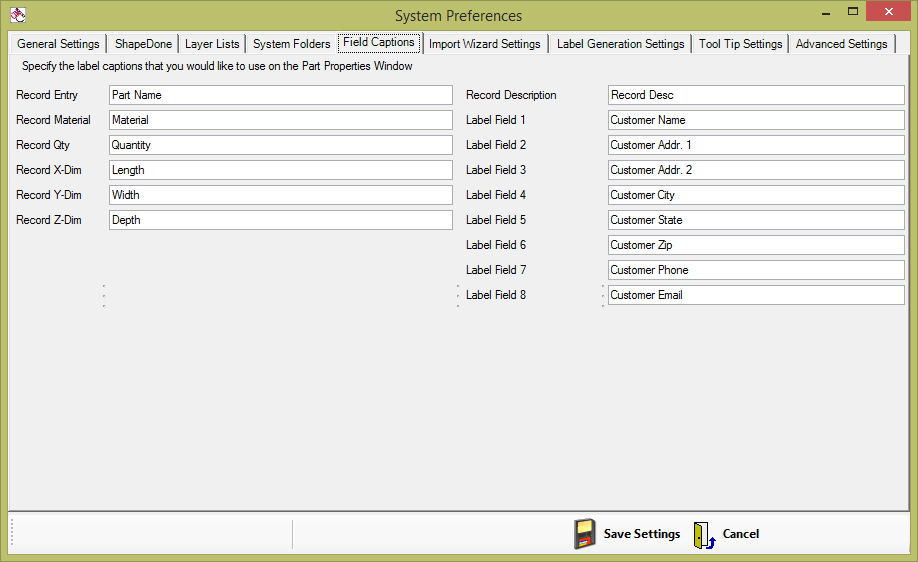

For instance, changing the Label Fields 1-8 shown above from 'Customer Info 1-8' to more specific data like this:



Field_Captions2_Settings

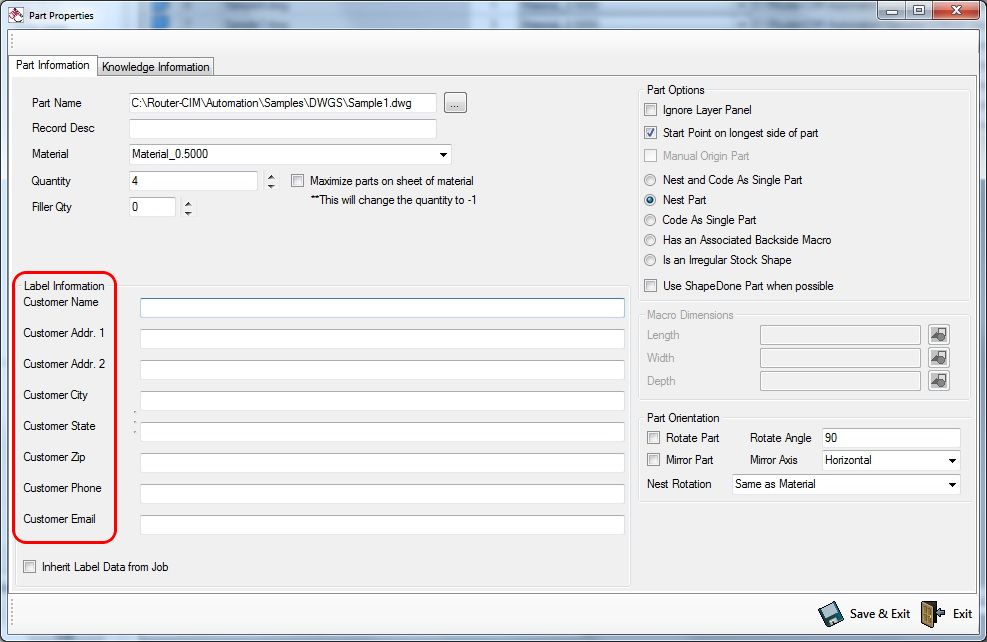

Would show up in the Part Properties like this:



Field Caption SettingsR3

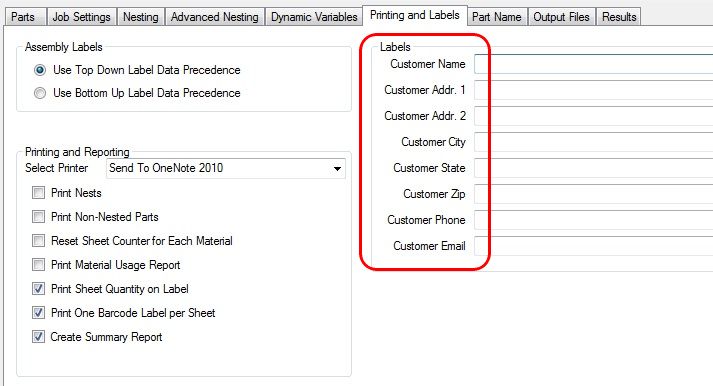

And in the 'Printing and Labels' tab like this:



Field Caption SettingsR4
