Edit Knowledge



Router-CIM Toolbar:   mac2cf12



Router-CIM Ribbon: EditKnow



Keyboard:        KE





Editing a Selected Knowledge



Selecting this icon from the Router-CIM toolbar will bring you to the interface below.



You may also select DOIT Edit from the Control Panel.



Knowledge_001

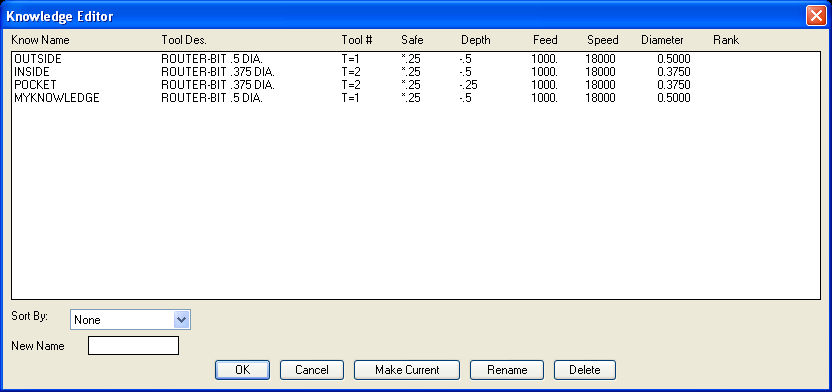

This displays the Knowledge Editor.



Knowledge_021



Using the Knowledge Editor



Making a knowledge current

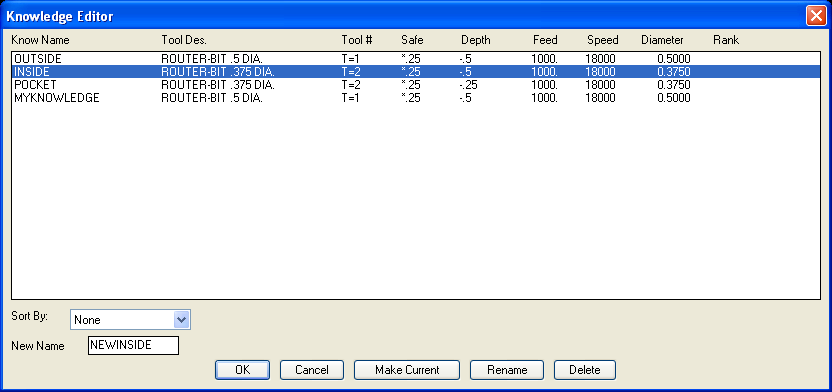

To make a Knowledge current in the Status Page, select it from the list so that it is highlighted.



Knowledge_023

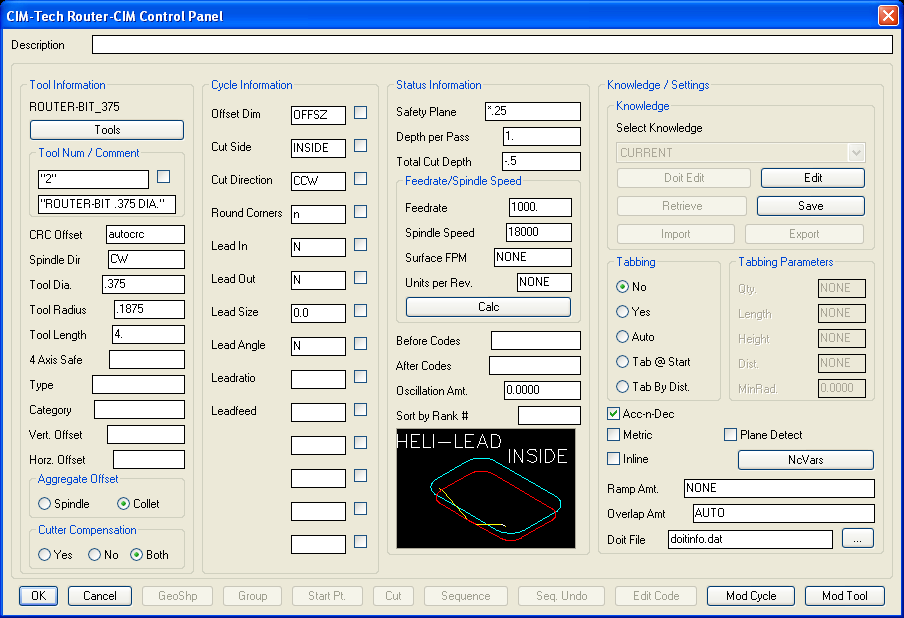

Then select 'Make Current', and the knowledge will be shown on the Control Panel.



Knowledge_027





Rename a Knowledge



To Rename a Knowledge, first select it in the window to make it current, then enter the new name in the appropriate box at the bottom left of the window.



Knowledge_023



Click on the 'Rename' button

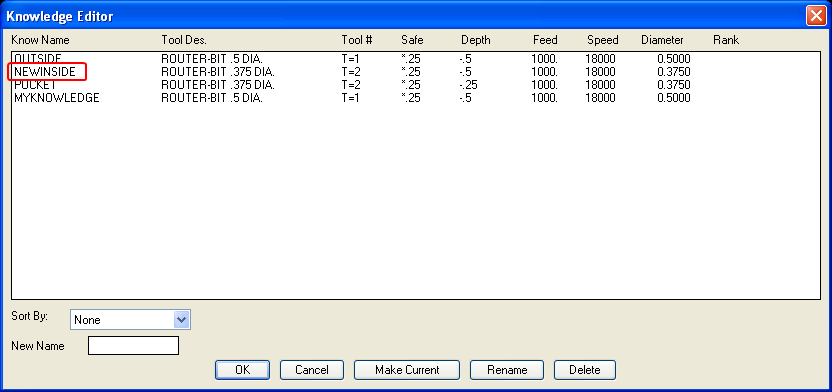

Knowledge_Rename_2



The knowledge now appears in the list under the new name.





Deleting a Knowledge

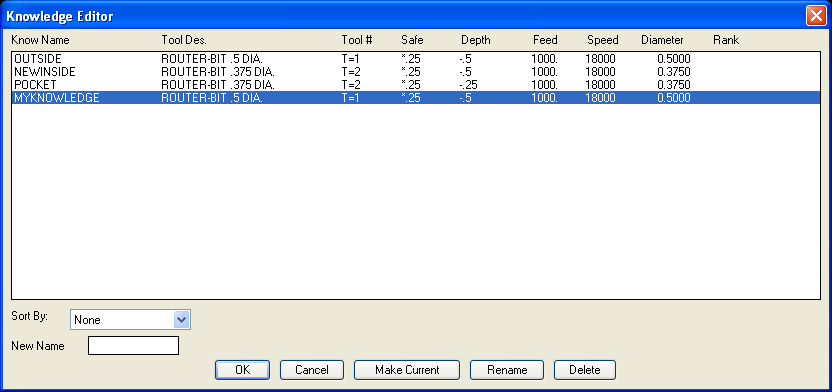

Delete a Knowledge by selecting it in the window to make it current and then click on the 'Delete' button.



Knowledge_025

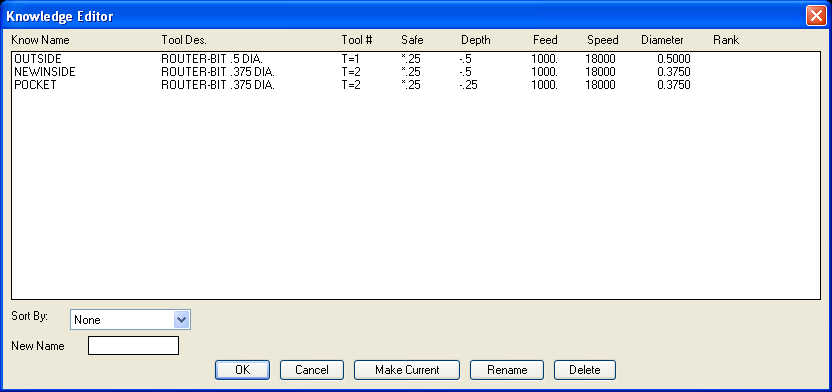

The Knowledge is deleted from the available selections.



Knowledge_026







Knowledge Quick Edit



The Knowledge Quick Edit will allow you to change certain parameters of the selected knowledge and re-save it to the list without changing its name.  This has the benefit of allowing you to change items like a tool number or tool, and then be back in the Knowledge Editor with those changes saved.

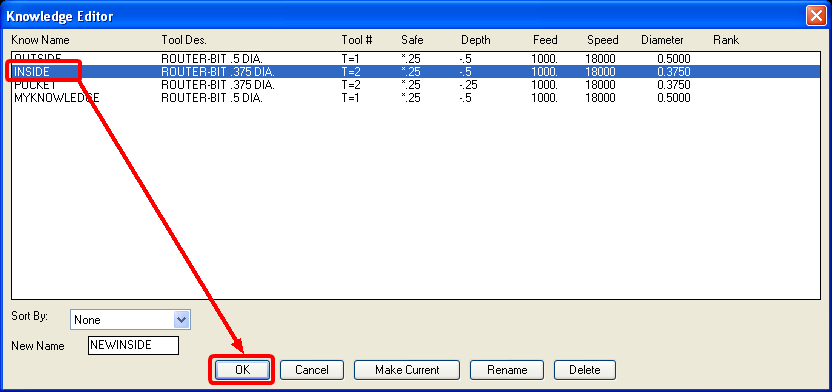

Select a knowledge from the list so that it is highlighted.



Knowledge_SetCurrent



Now select the 'OK' button.



The Control Panel is displayed, with only certain items available to you.  You can change a tool, tool description, cycle, cycle parameters.  You cannot Geoshape, Start Point Edit, even Cut is not allowed.



Knowledge_027

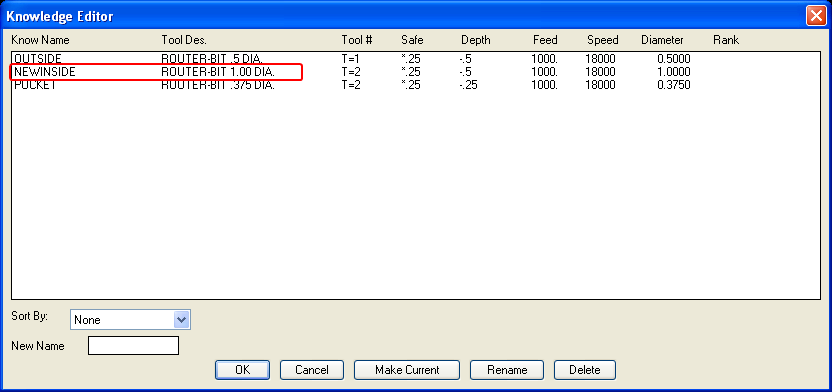

Change the tool to a 1" end mill and the description, and click on 'Save' in the Knowledge section, and you are returned to the Knowledge Editor with your changes intact.



Knowledge_NewTool





When no Knowledges are selected, click on 'OK' to leave the Knowledge Editor.
